Casa3000 Household Power Storage System
Family Use Back up Solar Power Energy Storage System Casa3000 with Multiple Outputs
Features:

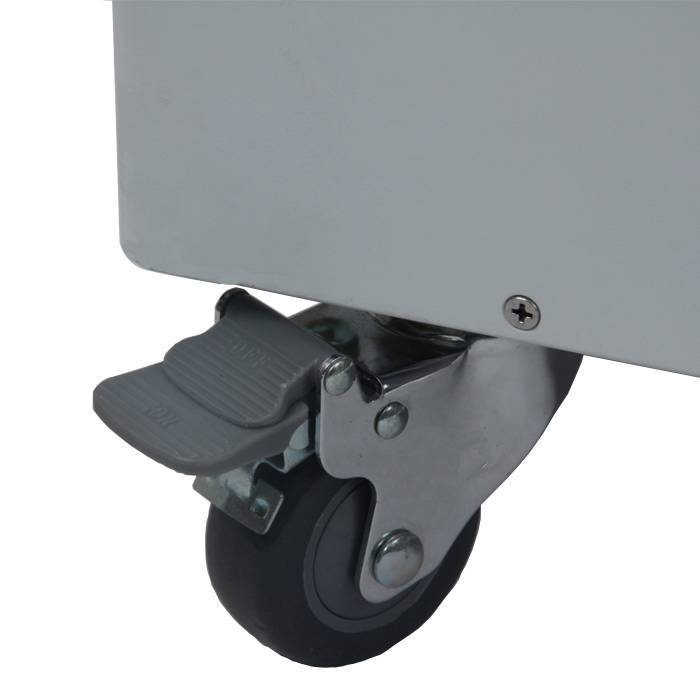

- Solid steel housing for home use, with wheels for easy moving.
- The battery adopts modular design with optional capacity and easy installation and operation.
- Patented lithium BESS technology and high-quality components.
- Safe and family-friendly.
- Long service life, no need to worry.
- Remote and mobile monitoring.
- Strong anti-load capacity, high load capacity, can drive all the load, in addition to drive a variety of resistance load, but also can load a variety of types of induction equipment, such as motor, air conditioning, electric drill, fluorescent lamp, gas lamp;
- The solar energy generator energy storage system of the family standby energy storage power adopts pure sine wave frequency circuit design. The product has stable performance, low failure rate, long service life, convenient maintenance, and normal service life can reach more than five years.
- Perfect protection: low pressure, high pressure, high temperature, short circuit, overload, etc.
Casa3000 Household Solar Power System Back-Up Power Storage Battery Generator
Product Parameters:
| Model | Casa 3000 | Casa 5000 |
| Capacity | 8.0KWh | 2.4KWh*8 |
| Battery type | Samsung Battery Cell | Samsung Battery Cell |
| Output power | 3000W | 5000W |
| Peak power | 4000W | 7500W |
| Output voltage | 100/110/120V OR 220/230/240V | 220/230/240V |
| Output frequency | 50Hz/60Hz±0.1% | 50Hz/60Hz±0.1% |
| Overloading capacity | 120%~130% @10min;130%~<150% @10s | 100%-110%@10min;110%-150%@10s |
| UPS function | Yes | Yes |
| Off/connect-grid | Yes | Yes |
| Max. Efficiency | 92%(＞70%Load) | 92%(＞70%Load) |
| AC input | 88～264Vac | 203~253 (50Hz Default) |
| Power factor | ≥0.94(full load) | ＞0.92%(full load) |
| Input frequency | 50/60Hz±5Hz | 50/60Hz±5Hz |
| Max. charging power | 2400W | 5000W |
| Max. charging efficiency | >92% | >92% |
| Solar power input | 2400W | 5000W |
| Solar kick-off voltage | 75Vdc | 75Vdc |
| MPPT qty | 2 | 2 |
| MPPT input voltage | 75~140 Vdc | 75~140V |
| Max. input voltage | 150 Vdc | 150 Vdc |
| MPPT power | 99.50% | 99.50% |
| Max. solar charging efficiency | >96% | >96% |
| Solar charging type | MPPT | MPPT |
| Working condition | Humidity: 5%~90% | Humidity: 5%~90% |
| Temperature: 0~45℃ | Temperature: 0~45℃ | |
| Product dimensions | H779*W350*D912mm | H1600*W650*D545mm |
| Net weight | 157kg | 270kg |
Backup power supply for emergency need, such as power outages, hurricane, earthquake.When/Where We Use This Back Up Solar Power Energy Storage System:
-
Good as high capacity power source of mobile phone,tablet,digital camera,wifi router,CPAP,drone,lamp,fan,TV,Refrigerator,laptop,etc.
-
